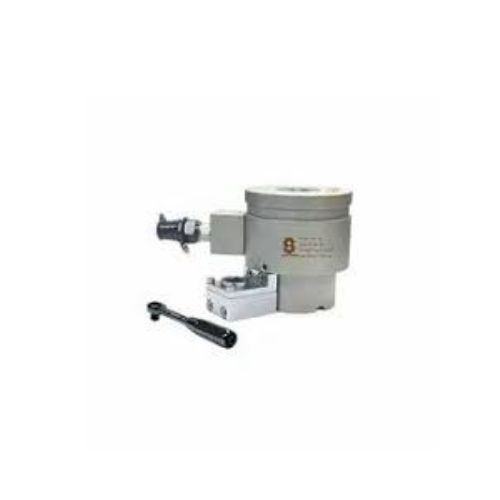

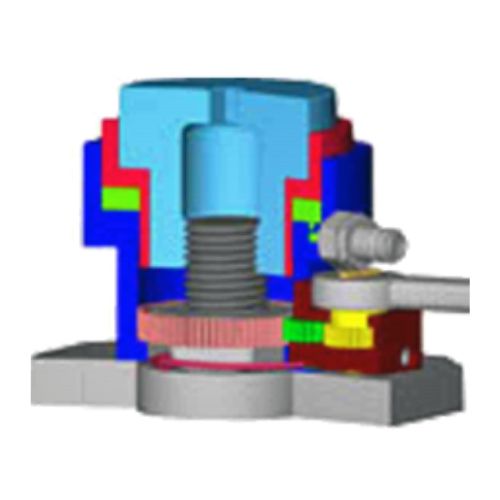

SUNRUN Make Single-Stage Hydraulic Bolt Tensioner
SUNRUN Make Single-Stage Hydraulic Bolt Tensioner
Specifications
- Single-Stage spring return, Hydraulic bolt tensioner.
- SES-Series single stage for 10.9.
- Capacity : 200-2880 kn.
- Bolt Range : M20-M72 3/4"-3"..
- Maximum Operating Pressure : 1350bar.
- Automatic piston return : return of piston into end position after pre tensioning.
- Nickel coating prevents corrosion of the components..
- Designed for compact space and easy to use.
- Quick-release the stud's nut in wound down against the joint face.
Product Specifications
| Model | Pre-load force (kN) | Pre-load force (lbs) | Thread | A/F width (mm) | A/F width (in) | Installation dimension Min. B (mm) | Installation dimension Min. B (in) | Installation dimension Max. B (mm) | Installation dimension Max. B (in) | Height C (mm) | Height C (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SES-20 | 200 | 44962 | M20 | 30 | 1 1/4 | 65 | 2.6 | 121 | 4.8 | 133 | 5.2 |
| SES-24 | 290 | 65195 | M24 | 36 | 1 7/16 | 70 | 2.7 | 133 | 5.2 | 146 | 5.8 |
| SES-27 | 380 | 85427 | M27 | 41 | 1 5/8 | 76 | 3.0 | 139 | 5.4 | 153 | 6.0 |
| SES-30 | 460 | 103412 | M30 | 46 | 1 13/16 | 82 | 3.2 | 149 | 5.9 | 168 | 6.6 |
| SES-33 | 570 | 128141 | M33 | 50 | 2 | 92 | 3.6 | 174 | 6.9 | 186 | 7.3 |
| SES-36 | 680 | 153870 | M36 | 55 | 2 3/16 | 98 | 3.9 | 183 | 7.2 | 198 | 7.7 |
| SES-39 | 800 | 179600 | M39 | 60 | 2 3/8 | 104 | 4.1 | 191 | 7.5 | 205 | 8.0 |
| SES-42 | 920 | 206824 | M42 | 65 | 2 9/16 | 114 | 4.5 | 214 | 8.4 | 231 | 8.8 |
| SES-45 | 1080 | 247294 | M45 | 70 | 2 3/4 | 148 | 5.8 | 243 | 9.6 | 251 | 9.9 |
| SES-48 | 1220 | 274267 | M48 | 75 | 2 15/16 | 158 | 6.2 | 258 | 10.2 | 263 | 10.4 |
| SES-52 | 1450 | 325973 | M52 | 80 | 3 1/8 | 104 | 4.1 | 140 | 5.5 | 280 | 11.0 |
| SES-56 | 1680 | 377679 | M56 | 85 | 3 3/8 | 130 | 5.1 | 157 | 6.2 | 344 | 13.5 |
| SES-64 | 2210 | 496828 | M64 | 95 | 3 7/16 | 148 | 5.8 | 175 | 7.5 | 372 | 14.7 |
| SES-72 | 2880 | 647450 | M72 | 105 | 4 5/8 | 168 | 6.6 | 203 | 8.0 | 406 | 16.0 |
